Daily Maintenance and Care Guide for Industrial Inspection Endoscopes

Why Regular Maintenance Matters

Industrial inspection endoscopes — including rigid borescopes, flexible fiberscopes, and video borescopes — are precision optical instruments that operate in demanding environments. Exposure to oil, metal debris, moisture, and mechanical stress can degrade performance over time. A consistent maintenance routine protects your investment, extends the service life of the probe, and ensures image quality remains sharp when it matters most.

Daily Cleaning Routine

After Every Use

Cleaning the insertion tube immediately after each inspection is the single most important maintenance habit. Follow these steps:

1. Wipe the insertion tube: Use a soft, lint-free cloth lightly dampened with isopropyl alcohol (70%) to wipe down the full length of the insertion tube. Remove all oil, grease, and debris.
2. Clean the distal tip: Gently wipe the camera lens and LED illumination window with a cotton swab moistened with lens-cleaning solution. Never use abrasive materials.
3. Inspect the bending section: Check the articulation section for any debris lodged in the joints. Use a soft brush or compressed air (low pressure) to clear particles.
4. Dry thoroughly: Allow all components to air-dry completely before storage. Moisture trapped inside connectors or around the bending section accelerates corrosion.

Cleaning the Display Unit / Controller

Wipe the screen and housing with a dry or slightly damp microfiber cloth. Avoid spraying liquids directly onto the unit. Keep ventilation slots clear of dust.

Insertion Tube Care

The insertion tube is the most vulnerable component of any endoscope. Protect it with these practices:

• Avoid sharp bends: Never force the tube into a bend radius smaller than the manufacturer’s minimum specification. Kinking the tube can permanently damage the internal fiber bundles or camera cable.
• Coil correctly for storage: Always coil the insertion tube in large, loose loops (minimum 15 cm diameter). Tight coiling causes fatigue cracks over time.
• Protect the tip: When not in use, fit the protective cap over the distal tip to shield the lens from scratches and impact.
• Check for outer sheath damage: Before each use, run your fingers along the full length of the tube to feel for cuts, abrasions, or soft spots that may indicate internal damage.

Optical System Maintenance

Image quality depends entirely on the condition of the optical path. Keep optics clean and protected:

• Lens cleaning: Use only dedicated optical lens cleaning solution and lint-free lens tissue. Never use paper towels, clothing, or household cleaners.
• Avoid touching the lens: Fingerprints leave oils that attract dust and degrade image clarity. Handle the distal tip by the tube, not the tip itself.
• Check for fogging: If images appear hazy, the lens may have internal condensation. Allow the scope to equilibrate to room temperature before use when moving from cold to warm environments.

Articulation System Care

For articulating videoscopes and fiberscopes, the bending section requires special attention:

• Exercise the articulation regularly: Even when not in active use, cycle the articulation control through its full range of motion monthly to prevent the control wires from seizing.
• Lubricate per manufacturer guidelines: Some models require periodic lubrication of the articulation mechanism. Consult your product manual for the correct lubricant type and interval.
• Inspect control response: If the tip feels stiff or does not return to center smoothly, have the unit serviced before the next inspection job.

Storage Best Practices

Proper storage prevents the majority of long-term damage:

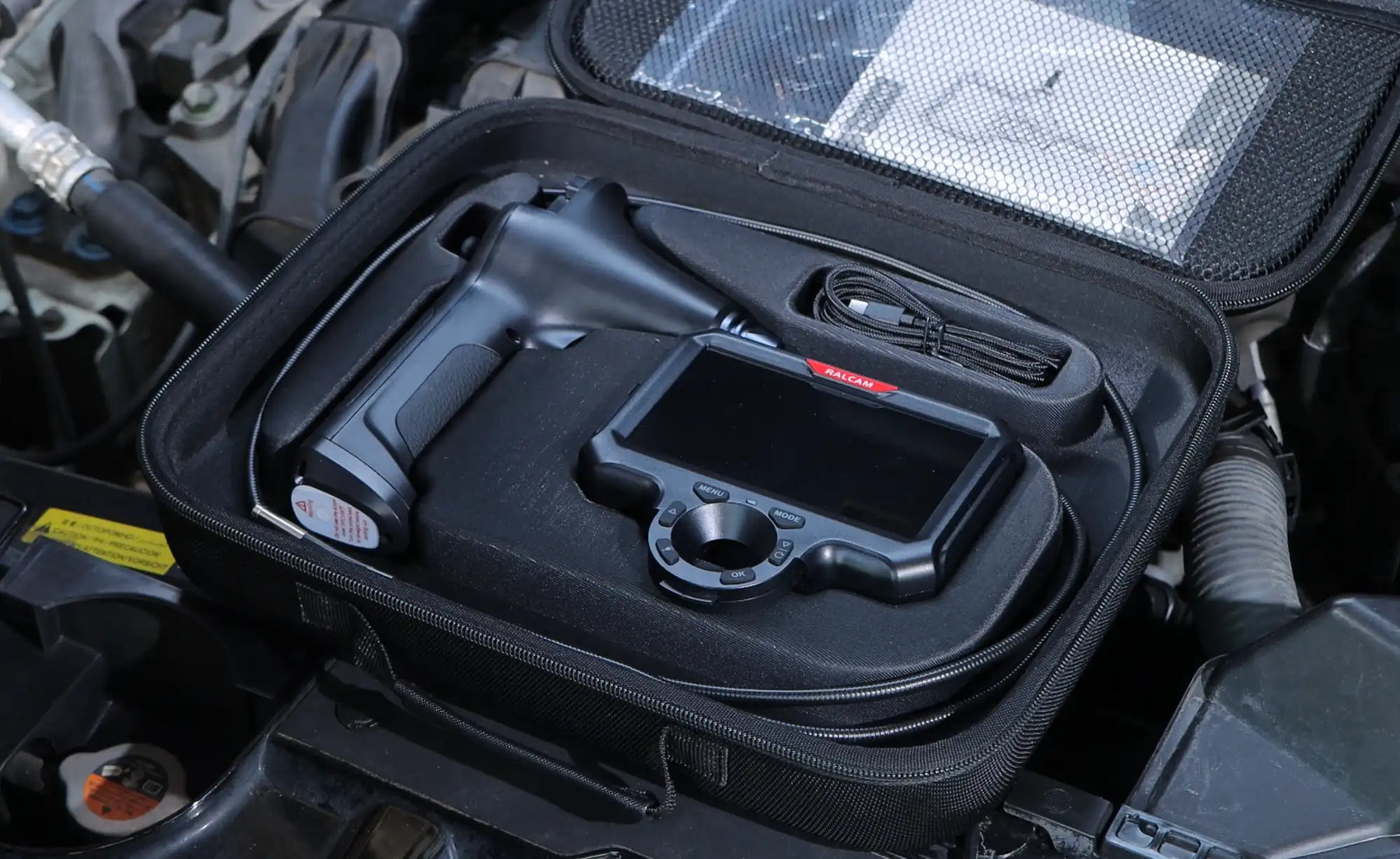

• Use the original carrying case: Hard-shell cases with foam inserts protect against impact and keep the insertion tube properly coiled.
• Store in a dry environment: Humidity above 80% promotes corrosion and mold growth on optical surfaces. Use silica gel desiccant packets inside the storage case.
• Temperature range: Store at 10–40°C (50–104°F). Avoid leaving equipment in vehicles during extreme heat or cold.
• Keep away from solvents: Store endoscopes away from chemicals, solvents, and fuels that can degrade the outer sheath material.

Battery and Power System Maintenance

• Charge regularly: For battery-powered units, avoid fully depleting the battery. Recharge after each use and store with a 40–60% charge if not in use for extended periods.
• Inspect connectors: Check power connectors and USB ports for bent pins or corrosion. Clean with a dry brush if needed.
• Replace aging batteries: If battery life has dropped significantly from the original specification, replace the battery pack. Operating with a degraded battery risks unexpected shutdowns during critical inspections.

Periodic Inspection Checklist

Perform a thorough inspection every 3 months or after 50 hours of use, whichever comes first:

• ☐ Full-length visual inspection of insertion tube sheath
• ☐ Lens clarity check — capture a test image on a white surface
• ☐ Articulation range and smoothness test
• ☐ LED brightness check — compare to baseline
• ☐ Connector and cable integrity check
• ☐ Battery capacity test
• ☐ Water/dust ingress test (if IP-rated model)

When to Send for Professional Service

Some issues require factory or authorized service center attention:

• Cracked or scratched distal lens
• Insertion tube kink or permanent deformation
• Articulation wire breakage (tip no longer responds to controls)
• Water ingress inside the insertion tube
• Significant drop in image resolution or brightness despite clean optics

Attempting to repair these issues without proper tools and training can cause further damage and void the warranty.

Conclusion

A well-maintained industrial inspection endoscope delivers years of reliable service. The investment in a few minutes of cleaning and careful storage after each use pays dividends in consistent image quality, reduced repair costs, and longer equipment life. At Ralcam, all our borescopes and videoscopes are designed for durability in demanding industrial environments — and with proper care, they will perform at their best for every inspection job.
