The Hidden Cost of Weld Defects — And the Inspection Method That Finds Them First

A weld is not a weld until it has been inspected. This is not a philosophical position — it is a practical description of how quality assurance works in any industry where weld integrity determines structural safety or process containment.

Pipe welds in an oil refinery carry hydrocarbons under pressure. Welds in a nuclear coolant loop must maintain integrity under radiation, thermal cycling, and mechanical stress for decades. Welds in a pressure vessel contain reactive chemicals at temperatures and pressures that, if released, produce consequences measured in human lives and regulatory shutdowns.

In every one of these applications, the question is not whether weld inspection is necessary. It is which inspection method is most effective for the specific geometry and defect type — and increasingly, that answer includes industrial endoscopes.

What Weld Defects Look Like and Where They Hide

Weld defects fall into a well-characterized taxonomy. Porosity — gas pockets trapped in the solidifying weld metal — appears as spherical or elongated voids. Lack of fusion — incomplete bonding between weld metal and parent material, or between weld passes — creates planar discontinuities that are mechanically more dangerous than equivalent-sized porosity because of their flat geometry and stress concentration effect. Cracking — in the weld metal, the heat-affected zone, or the parent material — is the most serious defect category and can initiate from any of the above.

Where these defects are most likely to occur determines which inspection method finds them most reliably. Volumetric defects like porosity are well-detected by radiographic inspection (X-ray or gamma ray). Planar defects like lack of fusion and cracks are better detected by ultrasonic methods that are sensitive to planar discontinuities regardless of orientation. Surface and near-surface defects on accessible surfaces are detected by magnetic particle or liquid penetrant inspection.

Industrial endoscope inspection addresses a different but overlapping problem: visual assessment of the weld bead's interior surface in geometries where that surface is enclosed and inaccessible.

Where Endoscope Inspection Adds Unique Value

The interior surface of a completed pipe weld is not accessible to magnetic particle or liquid penetrant inspection without disassembly. Radiographic and ultrasonic methods detect volumetric and planar defects but produce abstract representations — a film image or a waveform — that require interpretation and don't directly show the weld bead's geometric form.

An endoscope threaded through a completed pipe assembly shows the weld bead directly. Incomplete penetration — where the root pass has not fully fused across the joint's interior surface — is immediately visible as a gap, a groove, or an asymmetric bead profile. Internal undercut, where the weld has melted into the parent pipe wall, appears as a groove running parallel to the weld toe. Burn-through — an area where excessive heat has created a hole or depression — is unambiguous. Surface-breaking porosity visible on the interior surface is directly documented.

These are findings that radiographic inspection may detect as a density variation on film but cannot characterize geometrically in the way that a direct visual image can. They are findings that surface NDT methods simply cannot access.

The combination of endoscope inspection with radiographic or ultrasonic methods provides a more complete picture of weld quality than any single method alone — which is why high-integrity weld inspection programs in the aerospace, nuclear, and petrochemical sectors routinely include visual internal inspection as a required element.

Pipe Geometry and Inspection Planning

Not every pipe weld is equally accessible to endoscope inspection. Straight pipe runs with accessible open ends present no particular challenge — the probe is inserted from one end and pushed to the weld location. As-built piping systems in process facilities are rarely this accommodating.

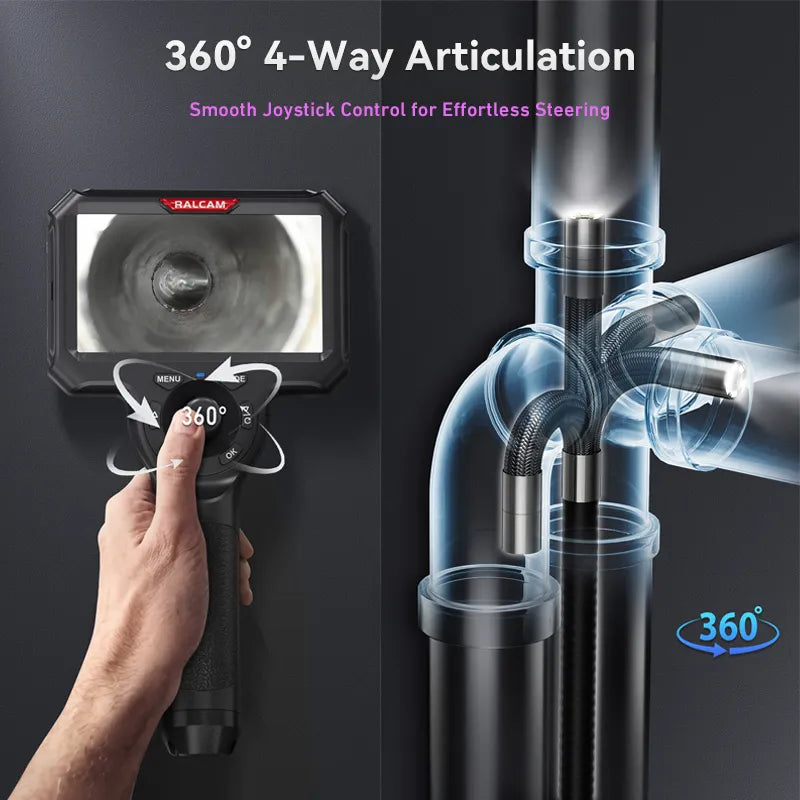

Bends, fittings, and valve bodies all interrupt the straight-line path. The probe must negotiate these obstacles to reach the target weld. This is where articulation capability and probe flexibility matter: a four-way steerable probe with sufficient tip deflection can navigate most standard fittings that appear in process piping, though the sequence of bends and the pipe diameter determine what's achievable in practice.

Inspection planning for weld verification in complex piping systems should map the inspection path in advance, identify any geometric constraints on probe navigation, and verify that the specified instrument's working length and articulation capability are adequate for the target access path. For large, complex piping systems, this planning work is not optional — it is the difference between an inspection that reaches the target weld and one that cannot.

Documentation and Traceability

Weld inspection in regulated industries is not complete without documentation. Radiographic film has always provided an inherent record — the film image is the inspection record. Endoscope inspection produces digital video and still images that serve the same function, provided the documentation workflow captures the right information.

Best-practice endoscope inspection documentation for weld verification includes: unique asset or weld identification linked to the weld map, instrument serial number and calibration status, inspector identification, date and time, probe position reference when multiple welds are inspected in a single pass, and a systematic image set covering the full circumference of each weld. Modern endoscope systems with integrated reporting software automate much of this metadata capture, embedding it in the image file or populating it directly into the inspection record.

Traceability — the ability to connect a documented inspection finding to a specific weld, inspector, instrument, and date — is a regulatory requirement in nuclear and aerospace applications and a practical requirement in any industry where weld failure would produce significant liability exposure.

Conclusion

Weld inspection is a multi-method discipline, and industrial endoscope inspection is a capable contributor to it — particularly for verifying internal weld geometry in enclosed piping systems where the interior surface is otherwise inaccessible. Used as part of a structured inspection program with appropriate documentation, it closes a gap that other NDT methods do not address. The weld that cannot be visually verified from the inside is not fully inspected until it has been.
