Turbocharger Failure Modes and How Endoscope Inspection Catches Them Early

The turbocharger has gone from a performance accessory to a standard component in the modern vehicle fleet. With that prevalence has come a growing volume of turbocharger failures — failures that are expensive, often preventable, and frequently preceded by warning signs that endoscope inspection can detect.

Why Turbochargers Are Failure-Prone

The turbocharger operates in one of the most demanding environments of any component in the vehicle drivetrain. Exhaust gas temperatures at the turbine inlet can exceed 900°C in gasoline engines. The turbine shaft spins at speeds between 100,000 and 300,000 RPM. Lubrication depends entirely on oil pressure and oil quality — any interruption of oil supply, or any degradation in oil condition, directly compromises the only thing standing between the rotating assembly and catastrophic contact.

Oil Starvation and Bearing Failure

Oil starvation is the leading cause of turbocharger failure. It occurs when the oil supply to the turbocharger bearings is interrupted — at cold start before oil pressure has built, after hot shutdown when the turbocharger continues spinning without oil flow, or chronically from extended oil change intervals.

The visual signature of oil starvation damage is coking — carbonized oil deposits — on the bearing housing interior surfaces, and physical wear or scoring on the shaft journal surfaces. Endoscope inspection through the oil inlet fitting can detect coking deposits and shaft condition before bearing failure becomes complete.

Compressor Wheel Damage from Foreign Object Ingestion

When the air filter is damaged, missing, or bypassed, debris enters the compressor inlet and contacts the spinning compressor wheel at high velocity. The damage is immediate and visible: leading edge erosion on the compressor blades, pitting from particle impacts, bent or missing blade tips in severe cases.

Endoscope inspection through the compressor inlet gives a clear view of blade condition in a few minutes — and catches damage that might otherwise be dismissed as "just a boost pressure issue" until the underlying cause is identified.

Turbine Wheel and Housing Carbon Accumulation

The turbine side operates in the exhaust stream, exposed to combustion byproducts including unburned hydrocarbons, soot, and oil vapor. Carbon deposits accumulate on the turbine wheel blades and in the turbine housing, reducing effective turbine area and affecting turbocharger response.

Endoscope inspection through the turbine inlet shows turbine wheel blade condition and deposit accumulation. Heavy carbon buildup indicates either high oil consumption, poor combustion quality, or EGR system neglect.

Building Turbocharger Inspection into Service Workflows

Turbocharger inspection is most valuable at three points in the service workflow: at high-mileage service intervals, at engine oil consumption diagnosis appointments, and at pre-sale inspections.

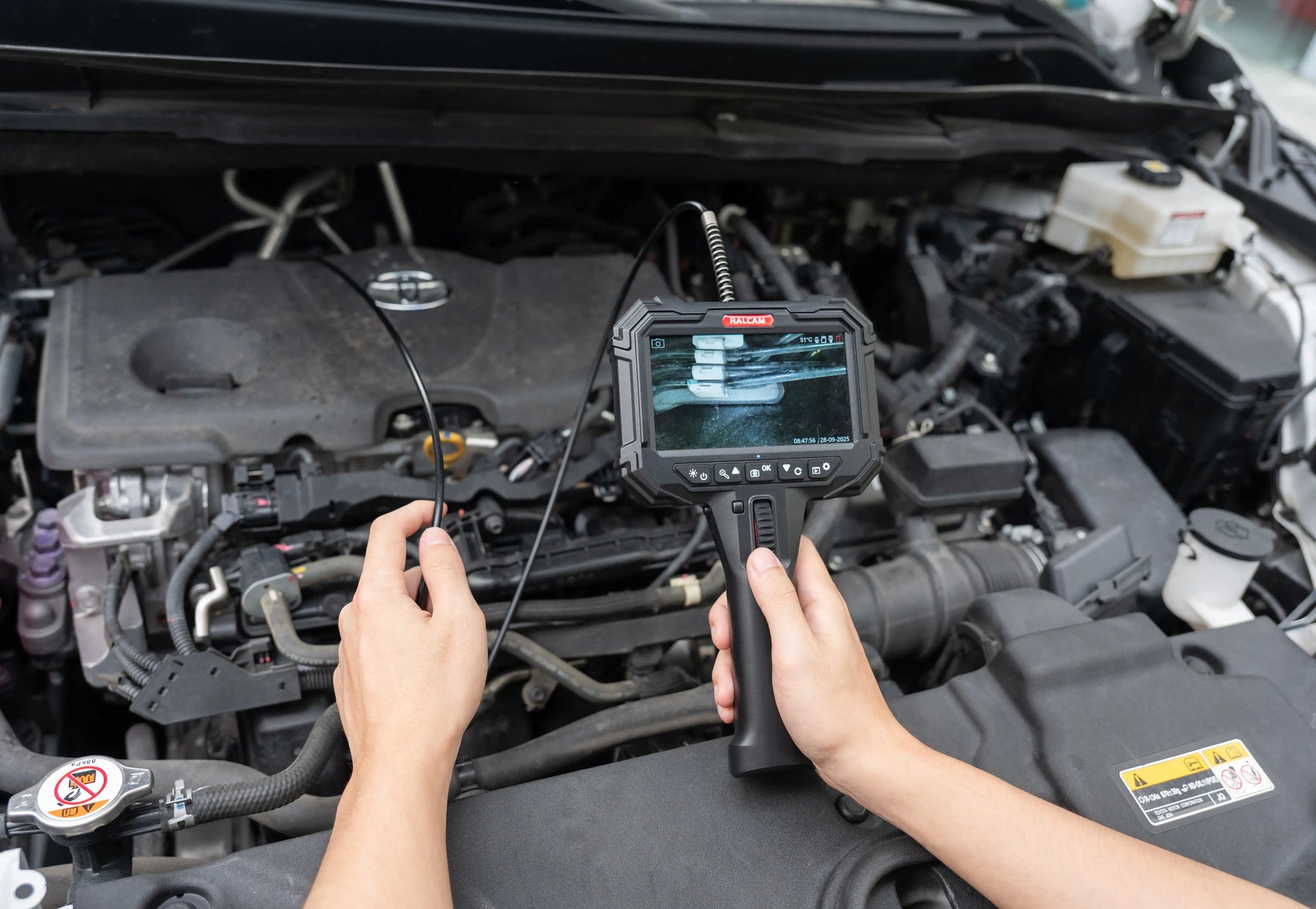

The inspection itself adds modest time to a service appointment — typically 15–30 minutes including probe access and image documentation — and requires a 4mm or smaller probe with sufficient articulation to direct the camera toward the components of interest from the available access points.

Conclusion

Turbocharger failures are expensive, common, and frequently telegraphed by visual conditions that develop weeks or months before complete failure occurs. Endoscope inspection makes those conditions visible before they become breakdowns, giving technicians and vehicle owners the information they need to act on evidence rather than wait for symptoms.
